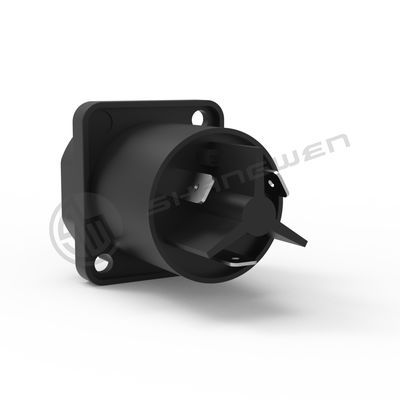

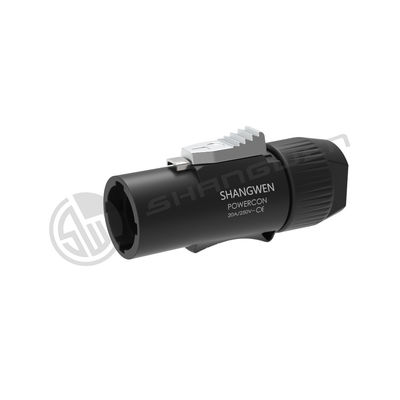

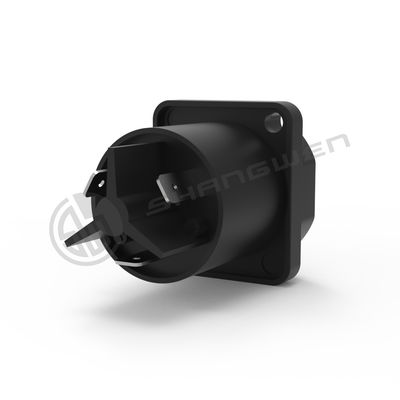

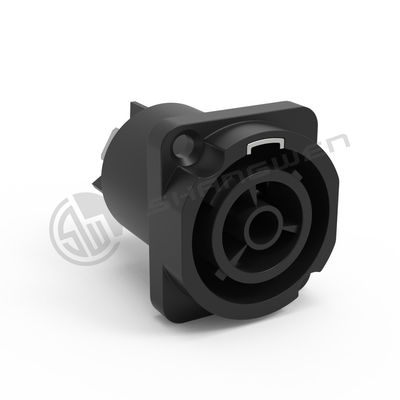

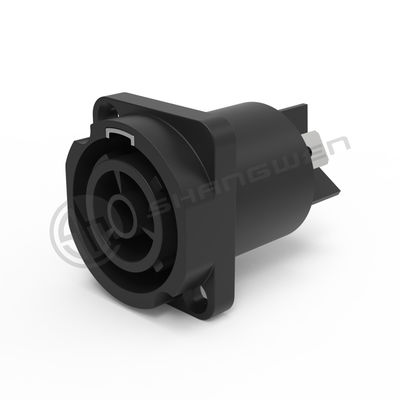

IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female

  • IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female
  • IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female
  • IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female
  • IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female
  • IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female
Place of Origin Guangdong, China
Nazwa handlowa SHANGWEN
Model Number SW3FPX-2
Minimum Order Quantity 2 pieces
Cena CN¥8.61-25.11/pieces

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Type led display connector Application Power
Gender MALE/FEMALE Industrial electronics accessories
Podkreślić

Outdoor Waterproof Panel Socket

,

IP65 Waterproof Panel Socket

,

High Current Capacity Panel Socket
Zostaw wiadomość
opis produktu
Products Description
Power connector series-male powercon
This series is widely used in outdoor rental LED display power connection.
The new upgraded model not only supports male and female inserts, but also supports male plug and male plug inserts
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature
resistance, explosion resistance and corrosion resistance.
The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
Using rotary locking design, easy to operate, stable and reliable !
IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female 0
Model : SW3FPX-2
☑The product is a new upgraded generation of power connectors, widely used in outdoor conditions for electrical connection
☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑High current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connection mode:
1. Screw clamping and welding
2. Lock the cable with screws
☑Protection level: used in outdoor scenes, protection level up to IP65
☑Connect reliably
☑Use different color design to distinguish signal input and output, yellow input, black output
☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force
IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female 1
IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female 2
IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female 3
1.Electrical parameters
Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
＞1000MΩ
2.Mechanical parameters
Service life
＞1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3.Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP65
Temperature range
-30°C to +80°C
4.Size reference (unit /mm)
IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female 4
Application area
IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female 5
Company Information
IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female 6
Patent & Certification
IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female 7
Exhibition activities
IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female 8
Packaging reference
IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female 9
Payment and logistics
IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female 10
FAQ
IP65 Waterproof Panel Socket with High Current Capacity Lockable Triple Core 3pin Power Connectors Outdoor 16A Male/Female 11
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
