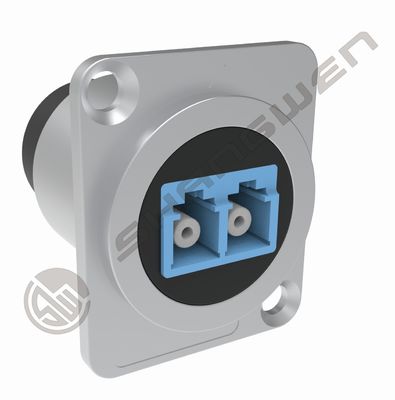

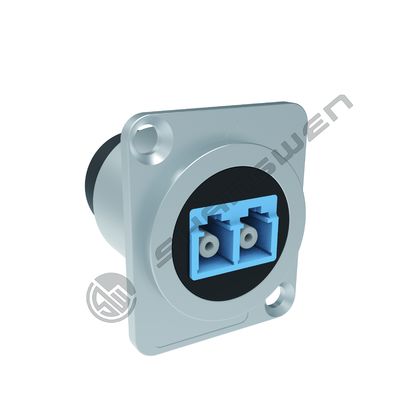

Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44

  • Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44
  • Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44
  • Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44
  • Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44
  • Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44
Miejsce pochodzenia Guangdong, Chiny
Nazwa handlowa SHANGWEN
Numer modelu SWDS-LC
Minimalne zamówienie 10 sztuk
Cena $1.93-1.98 / piece

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Aplikacja Dane Materiał mieszkaniowy Stop cynkowy
Poziom IP IP44 Typ USB
Elektronika przemysłowa Akcesoria
Podkreślić

IP44 Fiber Optic LC Chassis Connector

,

IP44 LC Chassis Connector

,

D-Type LC Female Chassis Connector
Zostaw wiadomość
opis produktu
Products Description
Indoor/outdoor use data Optical fiber connector—LC-LC
 This series of housings uses a full zinc alloy housing, the socket can be integrated installation, for some harsh conditions for special requirements, the product can be equipped with a protective gasket.
Innovative lockable fiber chassis connector with female to female bushing with snap lock for a secure connection.
IP67 fiber optic chassis socket as panel mounting version in metal case in the LP series with the size 24.
The precise fiber optic panel socket for fast data transmission in industrial environments with a width of 33 mm.
The connector is waterproof and dustproof according to IP67 protection class.
The metal lock ensures a secure connection and protects against data interruption.
The quick connector design allows insertion and removal with one hand.
* LC fiber optic panel mount adapter Connects two LC optical cables together, extends LC optical cables, and expands LC optical ports to ensure secure and stable signal transmission.
* This D-type LC female to female coupler with a panel, easy to be fixed in the equipment cabinet, equipment panel, wall,
desktop, ground plug and other places, the design is simple and convenient.
* The shell of this LC Module socket is made of excellent materials, high and low temperature resistance, long life, excellent electrical conductivity, reliable quality, smooth surface treatment, wear resistance, anti-copper rust, rest assured.
* The optical fiber is connected by an adapter through an internal open sleeve, and the signal transmission is rapid and stable, with good optical performance and mechanical stability.
* Widely used in fiber optic distribution frame (ODF), fiber optic communication network, designed for fast Ethernet, fiber
channel, Gigabit Ethernet speed, local area network, data center, on-premise installation, wide area network, commercial, etc
Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44 0


☑ Square appearance fiber optic socket with zinc alloy die-casting metal housing
☑ Case color: chrome silver, black paint
☑ Nylon plastic inner core, front female buckle and rear female mouth
☑The shell and inner core adopt a riveted structure, which can firmly fix the inner core in the round shell, making the production
and installation more concise and convenient, and greatly improving the production efficiency
Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44 2
Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44 4
Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44 6
1.Materials - Re-wireable and Panel Connectors
Shell material
Steel
Shell plating
Nickel
Contact plating
30 micro inch Gold
Connector body & locking ring
Glass Loaded Polyester
 Panel connector
 Nylon 6
 Flammability rating
 UL94V-0
‘O’rings
 Silicone
 Panel Gasket - round
 Silicone
Panel Gasket - square
 Neoprene
Mating cycles
 1,000
 RoHS
 Compliant

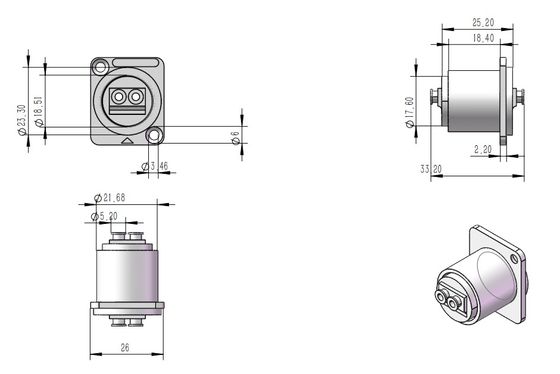

2.Size reference (unit /mm)
Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44 8
Application area
Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44 10
Company Information
Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44 12
Patent & Certification
Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44 14
Exhibition activities
Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44 16
Packaging reference
Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44 18
Payment and logistics
Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44 20
FAQ
Fiber Optic Panel Mount D-Type LC Female to Female Coupler Single-Mode Multimode Fiber Optic LC Chassis Connector IP44 22
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
